How to Parse IIS Logs using Log Parser Studio

Logs, Logs, Logs!!!

Ever had to parse mounds of IIS web server logs for specific metrics? It can be quite painful and time-consuming!

Log Parser Studio is a fantastic utility designed for this very purpose. It can parse various flat file formats using an SQL like query language.

Some of its features include:

  • Ability to parse a variety of log file formats including, W3SVC/IIS, CSV, HTTP etc.
  • Query log files using an SQL like query language
  • Generate reports
  • Generate a PowerShell script containing your query.

Installing Log Parser Studio

  1. Download and install the Log Parser framework from
  2. Download and run the Log Parser Studio GUI from

UPDATE: It appears that the above Microsoft download links do not work anymore. However you can download it directly from my website here –

Quick Demo

In my case, I wanted to obtain a list of distinct users who had accessed my IIS website over a specific time frame.

Here is a quick example showing how easy it is to do within Log Parser Studio.

  1. Open Log Parser Studio

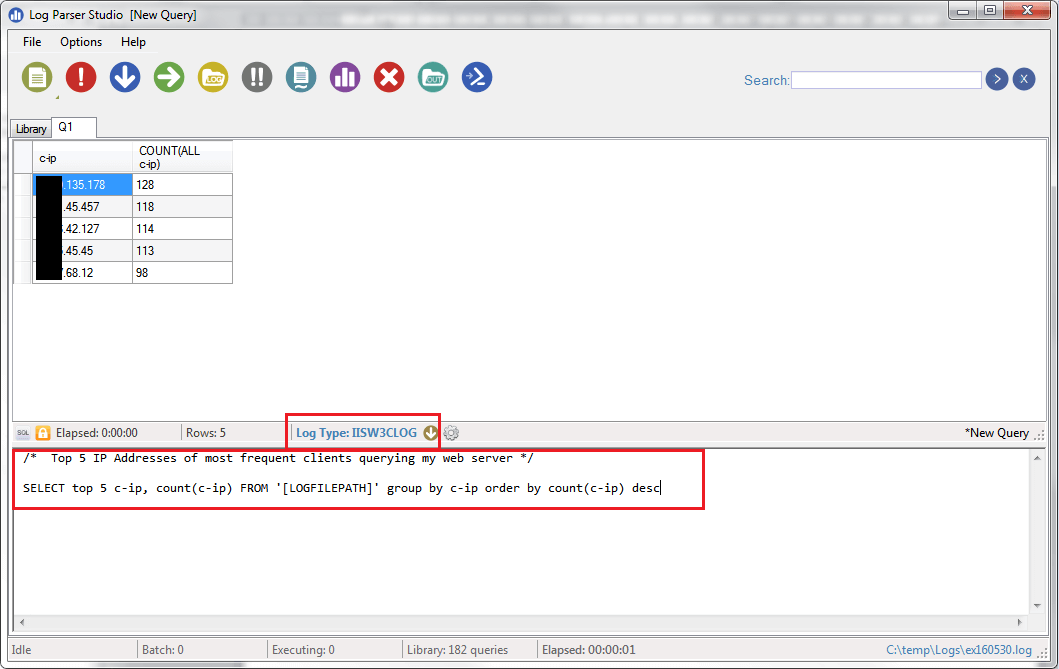

    Log Parser Studio Screenshot
  2. Choose the log files you want to query

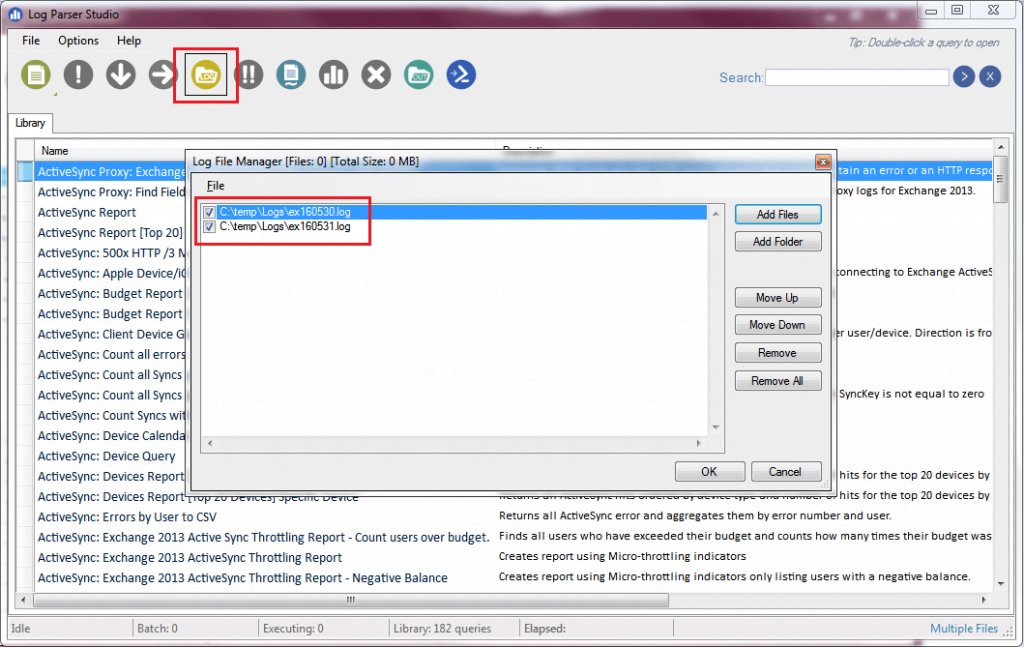

    Log Parser Studio Screenshot
  3. Create a NEW QUERY
  4. Specify the types of log files you have – in my case IIS log files.
  5. Execute your query

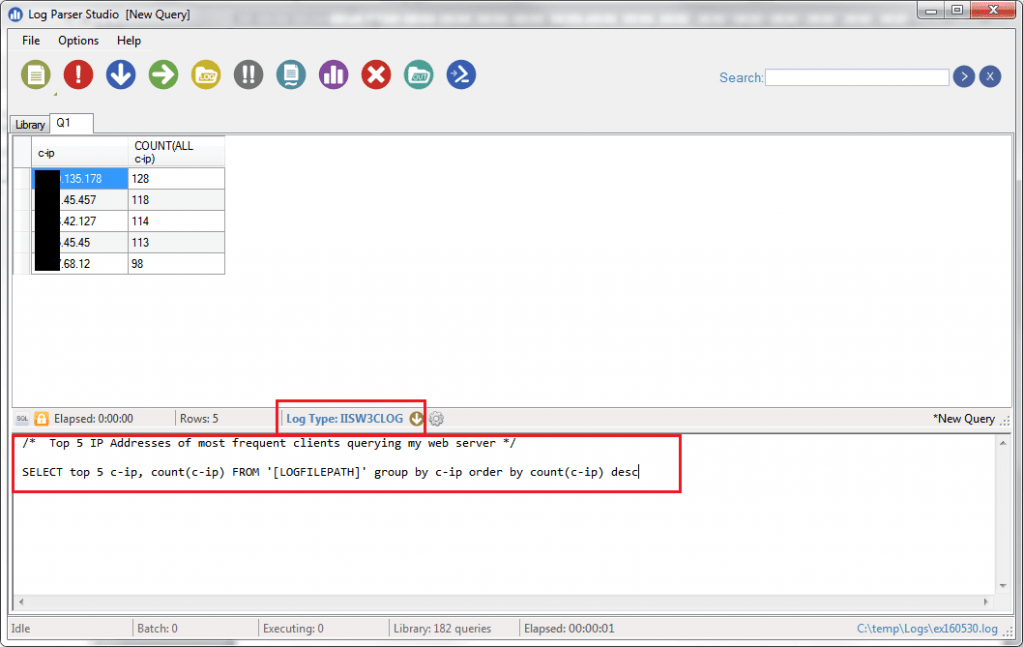

    Log Parser Studio Screenshot

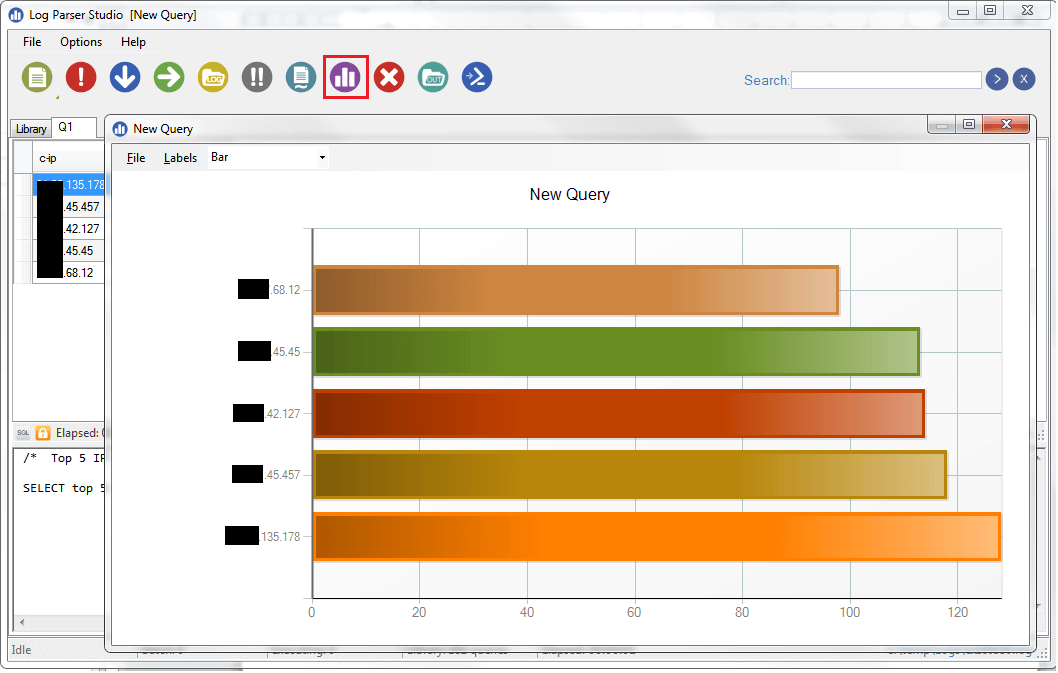

    Log Parser Studio Screenshot


Log Parser is one of the great little utilities that every Microsoft developer should add to their tool bag. Definitely worth a look!

Shane Bartholomeusz


  1. Thank you very much, this helps me a lot!

  2. This worked! You’re a life savior!

  3. Every time I try to run a very simple query…i get a error setting property “icheckpoint” error…what can I troubleshoot ?

  4. Are Log Parser and Log Parser Studio now depreciated? All Microsoft links to both utilities have been scrubbed.

    • Shane Bartholomeusz

      1st February 2021 at 5:57 am

      Yes it appears that the original download links don’t work anymore so I’ve updated the links above.
